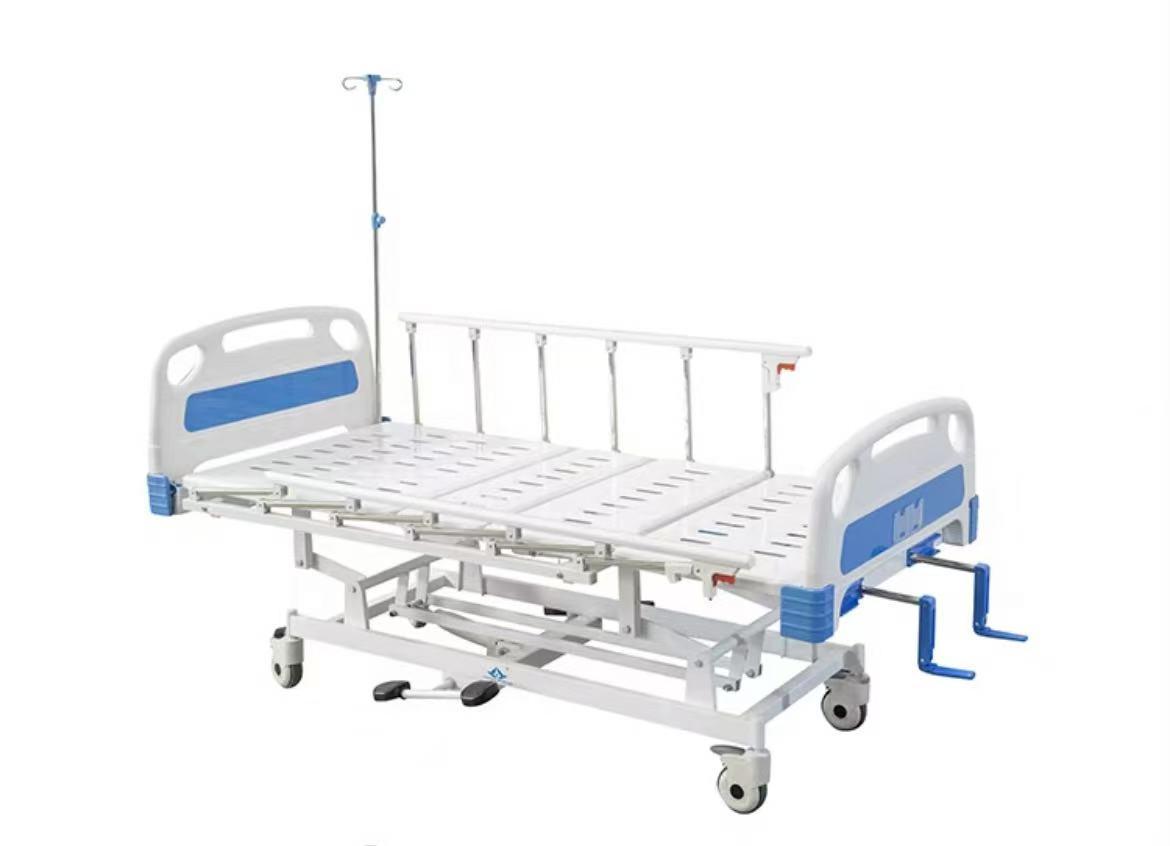

Crank Hospital Bed with Hydraulic Height Adjustment

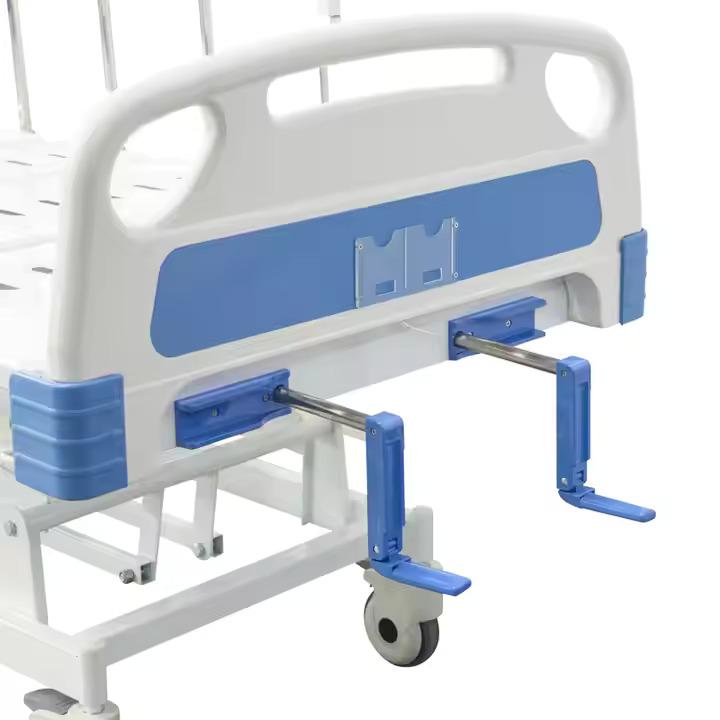

two cranks control the back and knee up & down adjustment

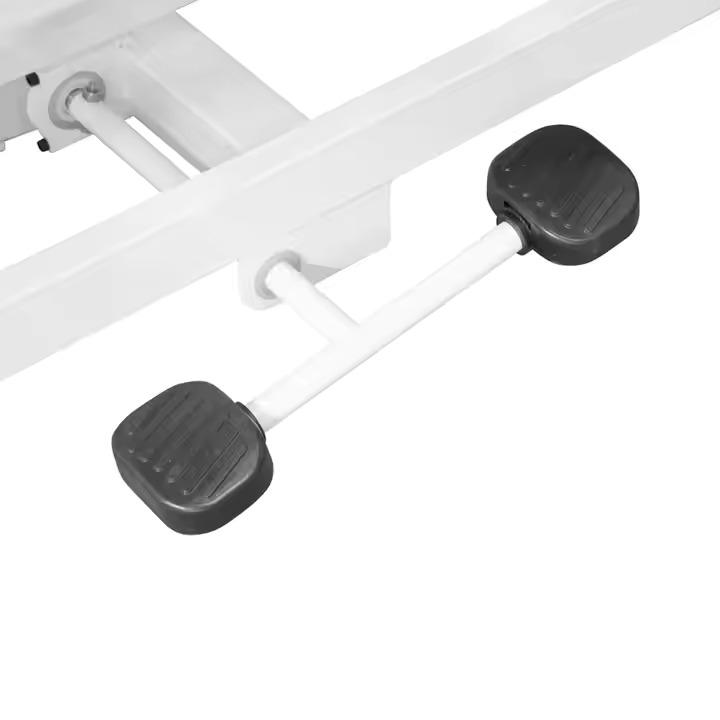

hydraulic foot pads control the crank hospital bed height high and low

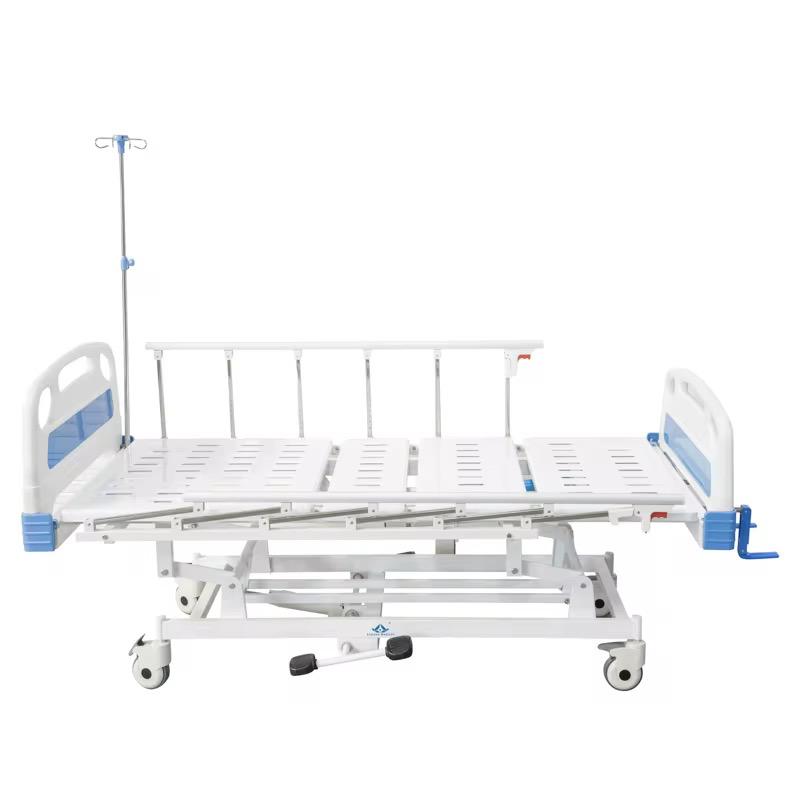

Two-Crank Hospital Bed with Hydraulic Height Adjustment System

Effortless Hydraulic Height Adjustment - Intuitive foot pedals allow caregivers to easily adjust bed height from 500-750mm, minimizing back strain during patient care.
Precision Patient Positioning - Dual manual cranks provide independent control of backrest (0-85°) and knee angles (0-45°).
Enhanced Patient Security - Collapsible aluminum side rails with integrated safety locks provide reliable fall prevention without compromising accessibility.

manual hospital beds

Description

Crank Hospital Bed with Hydraulic Height Adjustment

This two-crank hospital bed features hydraulic foot pedal height adjustment, providing essential patient positioning capabilities while offering caregivers ergonomic control. The robust steel construction supports a 400kg weight capacity, making it suitable for various healthcare environments including hospitals, nursing centers, and home care settings.

Features

Dual manual crank system for independent backrest (0-85°) and knee-rest (0-45°) adjustments
Hydraulic foot pedals for effortless height adjustment (500-750mm)
Collapsible aluminum side rails with safety locks for patient security
Detachable ABS head and footboards for easy cleaning and maintenance
5″ lockable mute castors for smooth mobility and secure positioning
Integrated IV pole stand with adjustable height and drainage hooks

Applications

Hospitals and medical centers
Long-term care facilities and nursing homes
Rehabilitation centers
Home healthcare environments

Product Specifications

Parameter	Specification Details
Functions
Backrest Angle	0-85°
Knee-rest Angle	0-45°
Height Range	500-750mm
Guardrails	Collapsible aluminum alloy side rails with safety locks
Castors	5″ (125mm) lockable mute castors
Structure & Material
Bed Platform	MS perforated platform with ventilation holes, 4 sections
Surface Treatment	Electroplated epoxy powder coated
Dimensions
Product Dimensions	L2150mm × W980mm × H500-750mm
Guardrail Height	Above mattress platform: 380mm (approximate)
Castor Size	5″ (125mm)
Packaging Dimensions	L2000mm × W1000mm × H500mm
Weight
Weight Capacity	400kg (800lbs)
Bed Weight	120kg
Optional Accessories
Accessories	Medical mattress, overbed table, bedside cabinet
