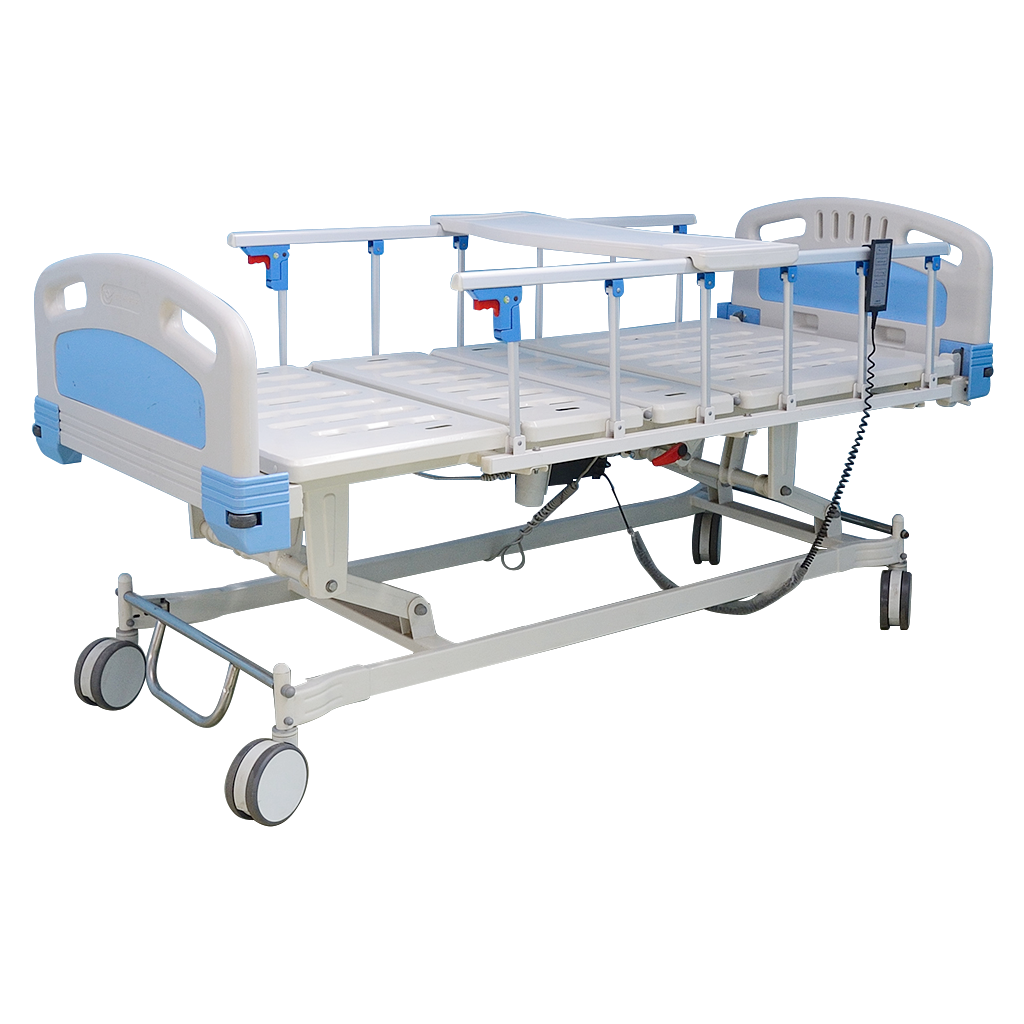

bariatric hospital bed[/caption] [caption id="attachment_284" align="alignleft" width="2404"]

high low electric hospital bed[/caption] [caption id="attachment_285" align="alignleft" width="1024"]

fully electric hospital bed[/caption]

Fully Motorized Electric Hospital Bed 3 Functions

fully electric hospital bed

high low,backrest,knee adjustable

medical purpose powered motors,3 years of guarantee

electric hospital beds

Description

Motorized hospital bed

This 3 functions of motorized hospital bed is powered by leading brand actuator which is medical purpose and 3 years of guarantee available, offering silent operation of adjusting back, knee and overall height up & down.

The full electric hospital bed is designed with central locking braking system. It takes effortlessness to make the bariatric hospital bed motionless once doctor or caregiver steps on the central braking pole.

Feature of the automatic hospital bed

Aluminum alloy hospital bed rails, pushing button operates fold and open;
Central locking braking system;
Bariatric hospital bed, heavy duty loading ability;
Original Denmark Linak or branded powered motor;
Knee up & down;
Back up & down;
Adjustable overall height high and low;
Optional manual operation of CPR release,
Hospital bed back and knee linkage down is the hospital bed CPR release function and auto regression position.

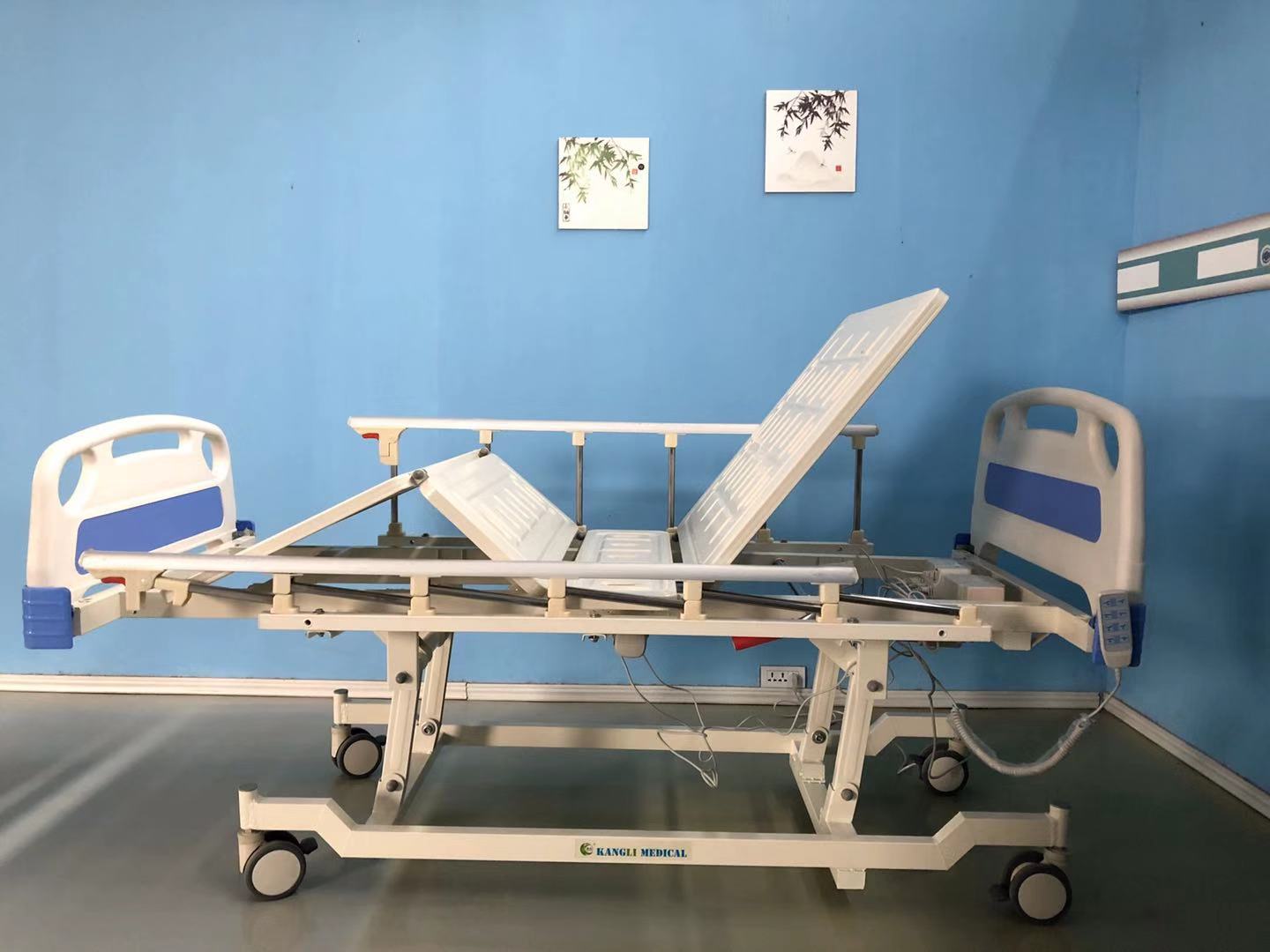

3 Function demonstration

Hand control

full electric hospital bed hand controller

Backrest, Knee adjustable;

High low adjustable

3 function electric hospital bed accessories details

Removable and easy to assemble hospital bed head and end board, ABS material;

6 posts aluminum alloy side rails,2pcs/kit;

4pcs premium central locking braking castor;

1pc electric hand controller;

Anti-bumper on the hospital bed four side angels;

Foldable guardrails button.

Six grade aluminum alloy guardrail, with metal connection between handrails, one key folding, high strength, stable structure, not easy to deform, durable.

Cold rolled steel stamping, thickened steel, high temperature spray plastic treatment, strong bearing capacity, hospital bed is not easy to deform, long service life span.

Electric operation, one key operation through remote control, patients can operate by themselves.

Technique

Specification
Product Name	Three Function Electric Automatic Hospital Bed
Overall Dimensions	L2150mmW980mmH 480 mm-700 mm
Hospital Bed Frame	Perforated power coasted steel
Hospital Bed Weight	120 kg
Hospital Bed Platform	MS perforated platform with ventilation hole
Bariatric bed loading Capacity	400 kg (800Ibs)
Electric Bed Voltage:	10V/60Hz or 220V/50Hz
Options	Medical mattress; Bedside table; Bedside cabinet
Packaging Box	L2000mmW1000mmH500mm
Available Functions
Backrest lifting angle	0-85°
Knee-rest lifting angle	0-45°
Hi-lo adjustment between	480 mm-750 mm
Optional manual CPR function and One-key CPR or regression flat position function;
Back battery one set
Standard Accessories
1 pair	Detachable ABS head & footboard
1 pair	Aluminum alloy side rail with safety lock
3Motor	Denmark LINAK actuators
4 pieces	6” (150 mm) Deluxe Castor with central breaking system
1 Set	Braking Pedals
1 PCS	Hand Controller
4PCS	IV pole socket
4PCS	Drainage bag hooks
