Meeting Hospital Bed Specifications for Government Tenders: A Guide by Anyang Top Medical Devices Co., Ltd

Government healthcare tenders, particularly those involving hospital beds, are highly competitive and require bidders to meet stringent specifications. These specifications go beyond basic requirements and encompass design, functionality, durability, and safety standards. The team at Anyang Top Medical Devices Co., Ltd, consisting of experienced sales managers and engineers, has analyzed the custom requirements found in hospital bed tenders and developed a streamlined approach to ensure manufacturers can meet these demands fully.

This blog post will explore how manufacturers can meet hospital bed specifications in government tenders and why partnering with a reliable manufacturer like Anyang Top Medical Devices Co., Ltd is essential to securing these contracts.

---

Importance of Complying with Hospital Bed Specifications

Hospital beds are a core element in healthcare settings, and their design can greatly impact patient care. When governments issue tenders, they expect all the specifications to be followed to the letter. These specifications range from the materials used in the bed’s construction to the advanced features it offers, such as adjustable positions and patient safety functions.

Manufacturers must fully understand these specifications and ensure that every detail is met. By doing so, not only will you enhance your chances of winning the tender, but you will also build a reputation for delivering high-quality, compliant products.

---

Key Hospital Bed Specifications from Government Tenders

Here is a sample of typical hospital bed specifications based on a tender document, analyzed by our team:

Specification	Description
1. Bed Frame	Material: High-strength steel, epoxy powder-coated for durability and corrosion resistance. Load Capacity: 250 kg (550 lbs).
2. Mattress Platform	Perforated steel with ventilation holes to promote air circulation. Size: 2000 x 1000 x 100 mm.
3. Side Rails	Material: ABS plastic, smooth edges, adjustable height. Design: Segmented tuck away side rails for patient movement.
4. Wheels and Brakes	Heavy-duty casters, 150 mm diameter, non-marking rubber. Central locking braking system for safety.
5. Height Adjustment	Electric system with easy-to-use controls for medical staff. Adjustable height range from 45 cm to 85 cm.
6. Headboard and Footboard	Material: Durable ABS plastic. Design: Removable for emergency access or patient transport.
7. Patient Positioning Functions	Back adjustment (0° to 70°), Leg elevation (0° to 45°) for patient comfort and medical procedures. Trendelenburg tilt of -12° to 12°.
8. Control Panel	Positioned for ease of access. Safety: Locking feature to prevent accidental operation.
9. IV Poles and Attachments	Removable stainless steel IV poles with adjustable height and multiple hooks.
10. Safety Features	Includes emergency CPR function, under-bed lighting for night visibility, and a backup battery for power outages.
11. Accessories	Pressure-relieving foam mattress and integrated patient weighing scale.
12. Maintenance	Long-term spare parts availability. Warranty: 2 years.

This table illustrates how manufacturers need to approach every aspect of a hospital bed’s design, ensuring compliance with the tender’s requirements. In government contracts, every detail matters, from the materials used to the features that ensure patient safety and comfort.

---

Why Customization is Key in Hospital Bed Manufacturing

Not all tenders are the same. Some governments may have specific requirements tailored to the needs of their hospitals, such as higher weight capacity or special features for intensive care units. Customization plays a significant role in ensuring that hospital beds not only meet but exceed these specifications.

At Anyang Top Medical Devices Co., Ltd, our engineering team works closely with clients to understand the nuances of each tender. We take the original tender specifications and break them down into understandable points, making it easier for review committees to assess the suitability of our products.

By customizing the manufacturing process, we ensure that the hospital beds align perfectly with the tender’s criteria. For example, in cases where a tender requires specific positioning functions like Trendelenburg or reverse Trendelenburg, we develop prototypes and test them to guarantee accuracy.

---

ICU Bed Example: How We Meet High-Standard Specifications

For a clearer understanding of the technical details involved in meeting a tender, here’s an example of an ICU bed specification that Anyang Top Medical Devices Co., Ltd offers, based on the above original tender document:

Parameter	Specification
Product Name	Intensive Care Bed
Overall Dimensions	L2150mm × W980mm × H450-850mm
Frame Material	Perforated epoxy powder-coated steel
Bed Weight	120 kg
Platform	MS perforated platform with ventilation holes
Loading Capacity	250 kg (500 lbs)
Electric Bed Voltage	220-240V, 50Hz
Packaging Box Dimensions	L2100mm × W900mm × H550mm
Functions
– Backrest Lifting Angle	0-70°
– Knee-rest Lifting Angle	0-40°
– Reverse & Trendelenburg	12°±2°
– Hi-lo Adjustment	450-850mm
– CPR Function	Manual and electric one-key CPR
– Heart Chair	One-key heart chair
– Patient Weighting Scale	Available in digital record
– Bed Leaving Alarm	Included
– Auto regression	Included
Accessories
– Head & Footboard	1 pair (Detachable ABS)
– Side Rails	2 pair : 4Pcs ABS structure, Tuck away design with angle indicator
– Motors	4
– Castor Wheels	4 pieces (6” deluxe, central braking)
– Braking Pedals	1 set
– Mattress	Included

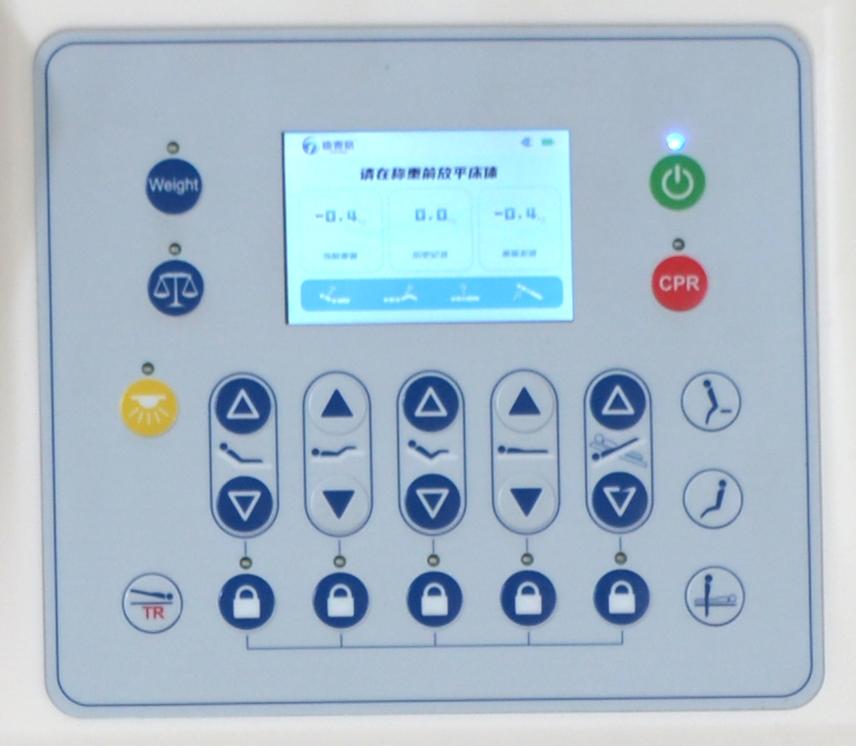

– Nurse Control Station Embedded in Footboard	1 unit
– Hand Wired Controller	1 unit
– Backup Battery	Included
– Side Rails Control Buttons	4 sets (Inner Head: 2 sets, Outer Head: 2 sets) Touch button control: l Back up and down, l Knee up and down, l Knee and hip together up and down, l trendelenburg, and revers
– Infusion/Drainage Hooks	1 unit (Adjustable height)

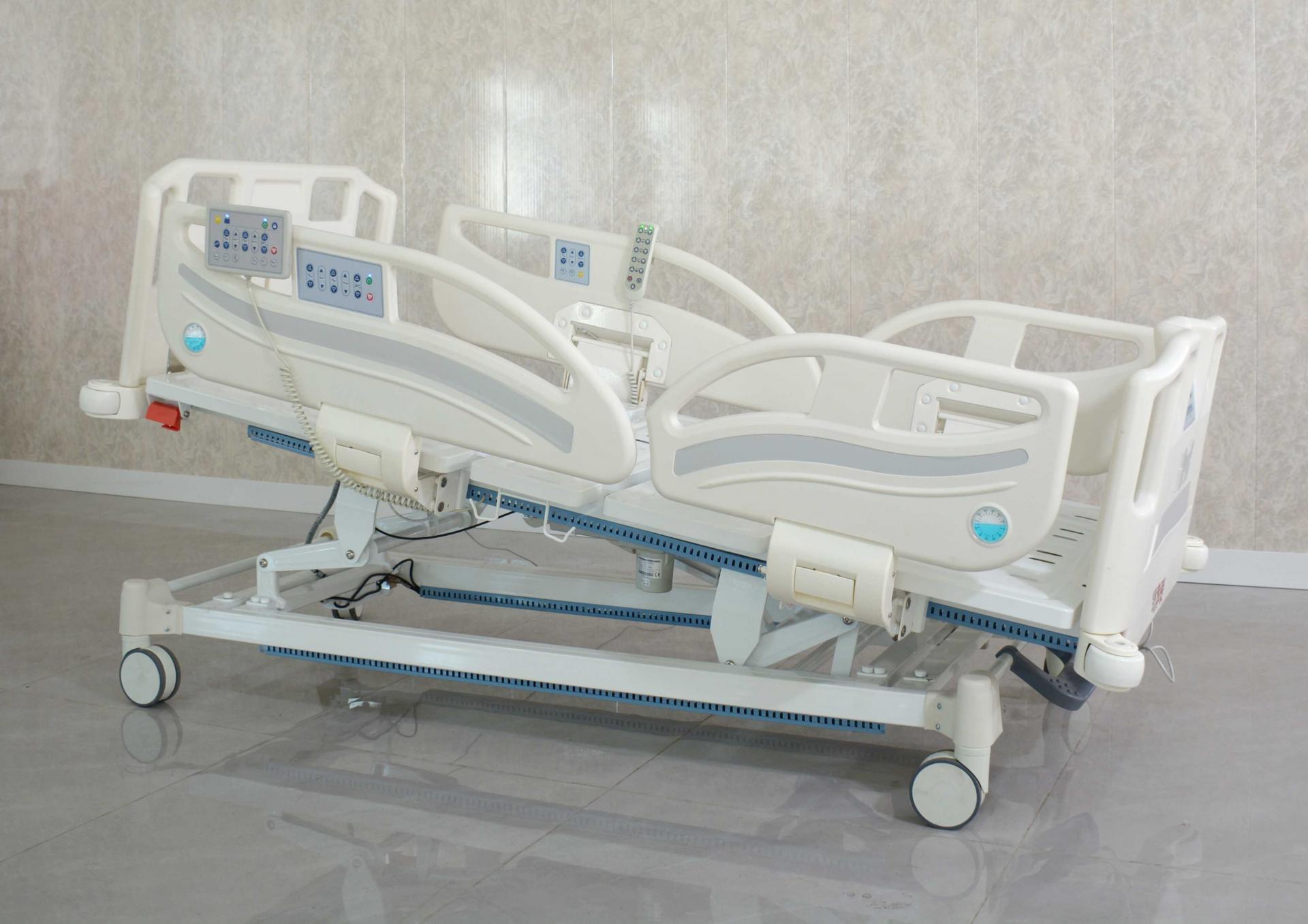

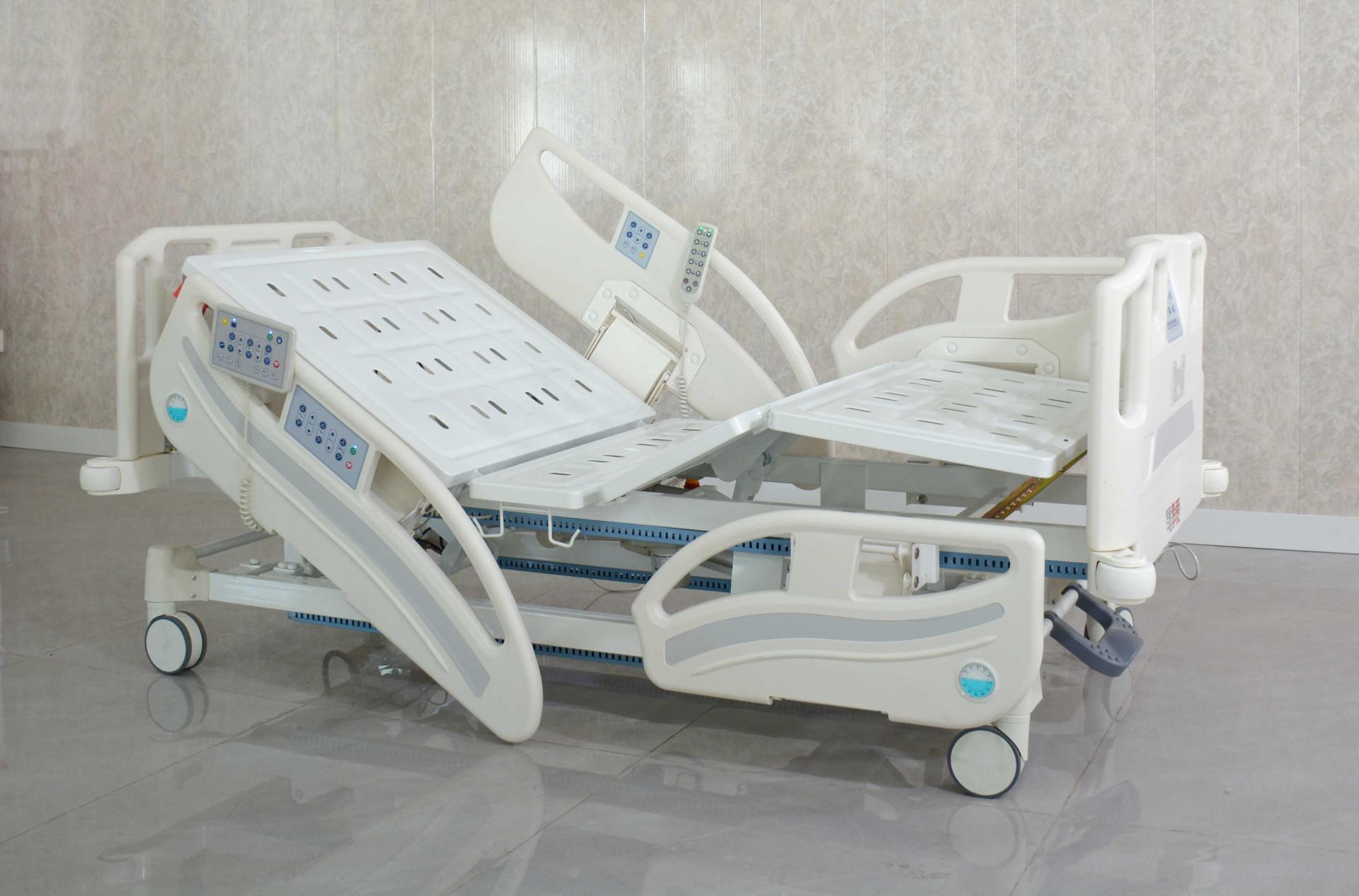

Real Product Demonstration-Clicking each image for enlarged details review:



---

Partnering with the Right Manufacturer: Why Anyang Top Medical Devices Co., Ltd is the Best Choice

When submitting a bid for a government hospital bed tender, choosing the right manufacturer is essential. Here’s why Anyang Top Medical Devices Co., Ltd stands out:

1. Customization Expertise: Our engineering team specializes in creating custom hospital beds that meet the exact requirements of each tender. We understand that no two tenders are alike, and we offer tailored solutions to meet specific needs.
2. Commitment to Quality: Every bed we manufacture undergoes stringent testing to ensure that it complies with international standards (ISO, CE marking) and meets the specifications outlined in the tender.
3. Comprehensive Support: From design to post-installation maintenance, we provide end-to-end support to ensure your hospital beds function optimally and meet all contractual requirements.
4. Focus on Innovation: We are always innovating to integrate the latest technology in our beds, ensuring features like weight monitoring scales, patient alarms, and emergency functions are not just added but fully optimized.

---

Conclusion

Government tenders for hospital beds are highly specific and competitive. To succeed, it is essential that every specification is met with precision. By partnering with a reliable manufacturer like Anyang Top Medical Devices Co., Ltd, bidders can ensure they are submitting high-quality, fully compliant products.

Our team, with years of experience and a commitment to excellence, can help guide you through the process of meeting hospital bed specifications, ensuring your product stands out to the review committee. From material selection to advanced customization, we ensure that every bed we deliver exceeds expectations and adheres to the highest standards of care.

If you are preparing to submit a bid for a hospital bed tender, contact us today for expert guidance and custom solutions. Together, we can deliver beds that meet every specification and win the contract.
