Obstetric Delivery Bed features an adjustable three-section design for maximum comfort and support during delivery.
Electric handset controller for easy and convenient position adjustment.
Our manufacturing team supports custom hospital tender specifications and offers OEM/Private Label bulk manufacturing for your unique Obstetric Delivery Bed needs.
Adjustment Technical:
| Function | Parameter |
|---|---|
| Height adjustment range | 600 ±20 mm / 920 ±20 mm |
| Back section angle | ≥50 ± 5° from horizontal |
| Leg section angle | 0-90° |
| Leg up adjustment | 0-45° |
| Reversed Trendelenburg | 10±5° |
| Trendelenburg | 10±5° |

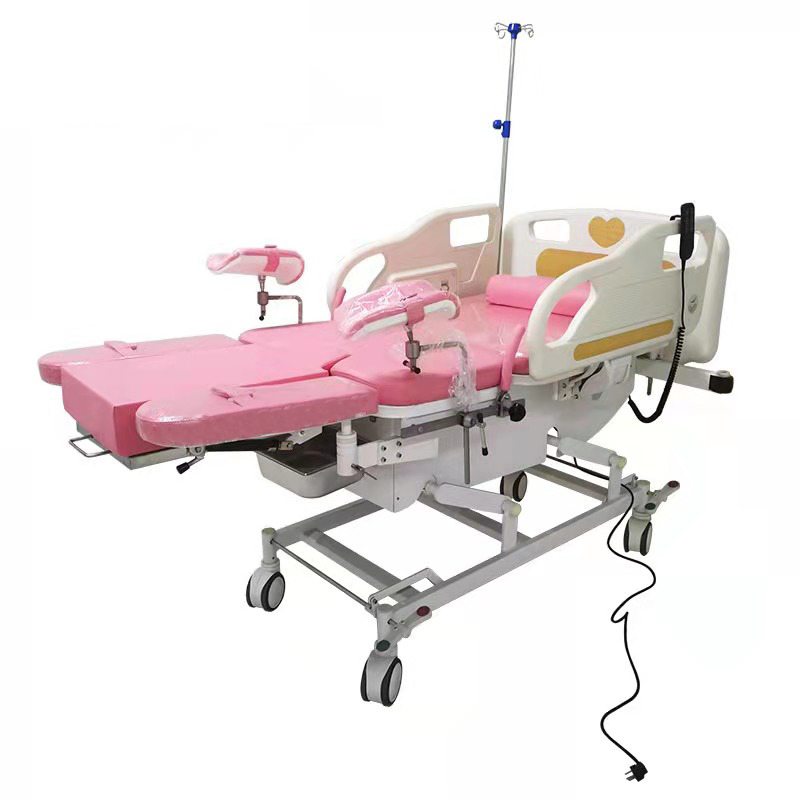

The obstetric delivery bed is a specially designed medical device for assisting in the birthing process. The bed features a height-adjustable steel structure that is pre-treated with epoxy powder for durability and easy cleaning.

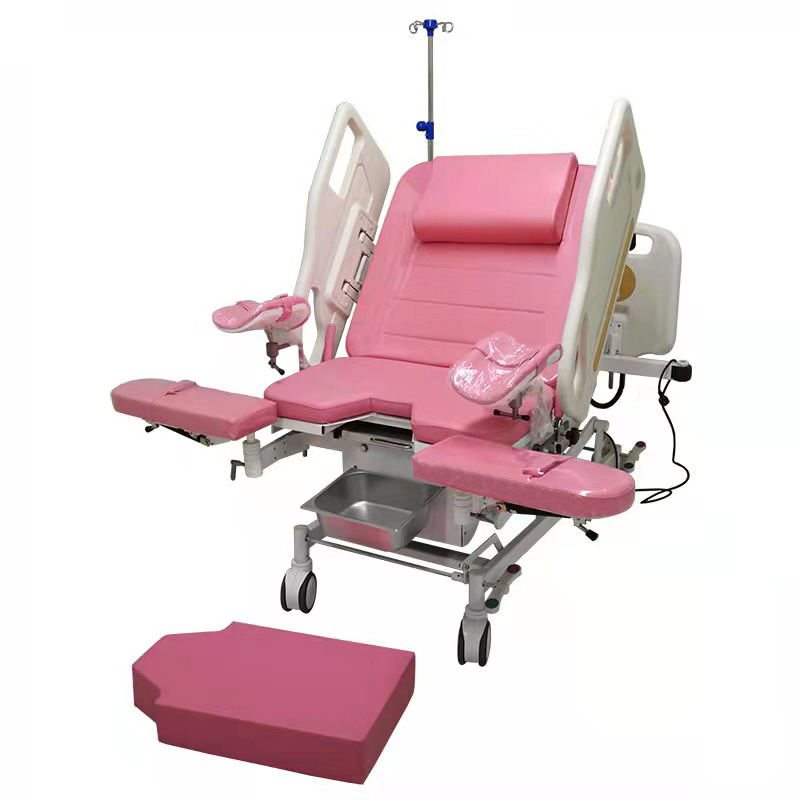

The bed is divided into three sections, each of which can be adjusted independently to provide maximum comfort and support for the mother during delivery. The back section can be raised to an angle of 50 ± 5° from the horizontal, while the leg section can be opened to an angle of 0-90° and adjusted to a leg up position of 0-45°. The bed also features Trendelenburg and Reverse Trendelenburg positions, each adjustable to 10±5°.
The bed is equipped with side rails and an angle indicator to ensure the safety and security of the mother during delivery. The electric handset controller allows for easy adjustment of the bed’s position and configuration with just the push of a button.
Application:
The obstetric delivery bed is designed to facilitate easy operation during the trauma of giving birth, with various functional and adjustment positions available. It is ideal for use in hospitals and other medical facilities, providing a comfortable and supportive surface for mothers during delivery.
Loading Specifications
| Parameter | Value |
|---|---|
| Overall Length | 2020 ±50 mm |
| Width | 1020 ±50 mm |
| Safe Working Load | ≥ 150 kg |
| Guardrail Safety Work Load | 250 N |
| Bed Frame | Steel with Epoxy Coating |
| Security Work Load | 225 N |
| Salt Water Bottle Rack Safety Work Load | 50 N |
| Handle Safety Work Load | 294 N |
| Leg Support Safety Work Load | 294 N |
| Net Weight | 160 kg |
| Accessory | Quantity |
|---|---|
| ABS Bed Headboard | 1 |
| ABS Side Rails | 2 |
| Infusion Rod Holes | 2 |
| Drainage Hooks | 1 |
| Leg Holders | 2 |
| Diameter 125(±2)mm Individual Brake Castors | 4 |
| Handrails (Side Rail) | 2 |
| Operating Handle | 1 |
| Instrument Tray | 1 |
| Mattress | 1 |
| Dirty Basin | 1 |
2-Can the bed be adjusted to different positions?
3-Is the delivery bed easy to clean and maintain?
4-Are there any accessories included with the delivery Bed?
5-Can the delivery bed be customized to meet specific hospital tender specifications?
